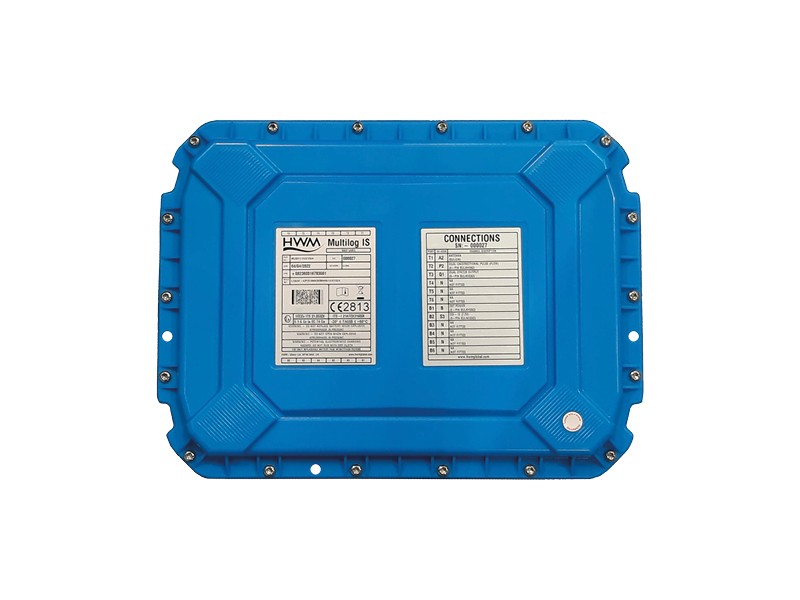

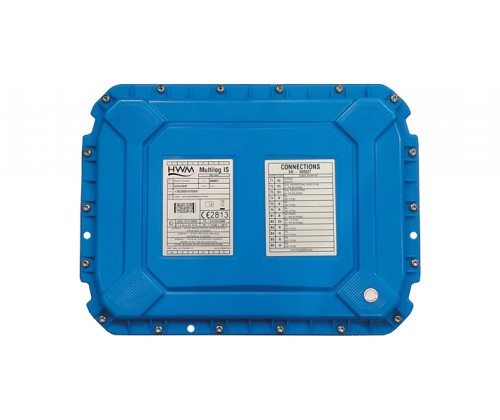

Intrinsically-safe and multi-application, Multilog IS has the capacity to support a wide variety of HWM and third-party sensors, including (MicroFlow-i, dBi or VEGAPULS) all at the same time.
Multilog IS is equipped with our advanced modem and connects reliably via LTE-M or NBIoT with 2G fallback for consistent and dependable data telemetry.
Sensors are configured locally via Bluetooth through our Deployment App, meaning that site data (including photographs) can be uploaded and accessed remotely.
IP68-rated and robust, Multilog IS is ideally suited for installation in environments where corrosion is a concern.
Key Features and Benefits
- Telemetry: NBIoT/LTE-M based cellular communication as standard with fallback 2G capability
- Intrinsically safe: certified for use in Zone 0 hazardous areas
- Serial and Analogue input options: for connection to SonicSens 3 ultrasonic level sensor, internal or external pressure transducers, active/passive 4-20mA, voltage, digital pulses, Modbus, SDI-12
- Various sensor connections: up to 16 channels
- Alarm: highly configurable alarms
- Robust: drop tested plastic housing and connectors to prevent corrosion in harsh environments
- External antennas: drop tested plastic housing and connectors to prevent corrosion in harsh environments
- Bluetooth® connectivity: local Bluetooth® configuration through Deployment App
- Fully waterproof: the IP68 rating has been tested at 10m depth over a 24 hour period
- Remote upgrades: firmware and programming changes made remotely for efficiency and cost-effectiveness
- Control outputs: replicated pulse inputs or trigger on alarm, allows operation of third-party sensors, e.g. water samplers
- Long-term monitoring: up to 5 year battery life
- External battery option: external battery input to support accelerated dial-in or powering of third-party sensors
